TEIN STREET ADVANCE Z4 COILOVERS LAND ROVER DISCOVERY SPORT L550 2014+
- SKU VSGJ0-G1AS2_1
- Car Model Land Rover
- Condition New
- Stock Location EU/UK (No import taxes for EU or UK)
Couldn't load pickup availability
TEIN STREET ADVANCE Z4 COILOVERS LAND ROVER DISCOVERY SPORT L550 2014+
Model: STREET ADVANCE Z4
Application: LAND ROVER DISCOVERY SPORT L550 2014+ AWD 2000cc
Part Number: VSGJ0-G1AS2
Spring Rate Front kgf/mm: 5.5
Spring Rate Rear kgf/mm: 7.5
Adjustment Range Front mm: 45 to 25
Adjustment Range Rear mm: 55 to 35

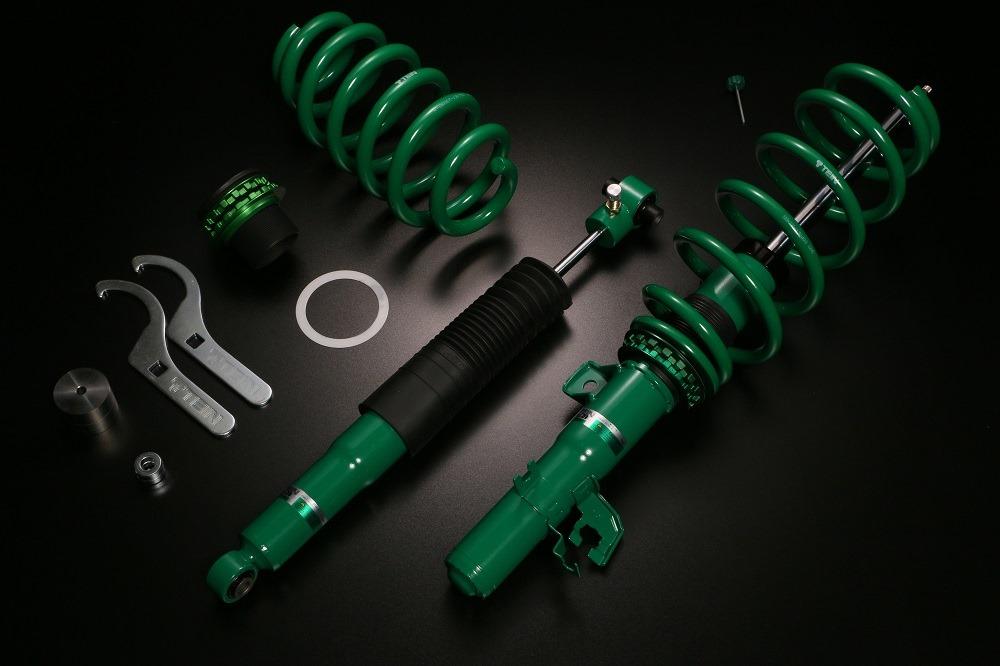

Image for illustration. Your application may vary.
Street Advance Z4 Coilover Suspension
The Tein STREET ADVANCE Z4 has threading type ride height adjustment system.
The ride height can be adjusted by moving the lower spring seat up or down. Its simple structure allows for easier handling.
Standard ride height for STREET ADVANCE Z4 is set at 1 inch (approx. 25mm) higher than the original, to accommodate various driving scenes from streets to off-roading.
STREET ADVANCE Z4 is designed and configured to be most suitable for the lifted height. Simply raising the standard height can lead to insufficient rebound stroke impairing the stability and also make the camber angle positive on strut suspensions.
STREET ADVANCE Z4 is tested on each vehicle models to optimize the dimensions and settings, in order to secure sufficient strokes and to enable the best suited alignment.
More technical information and product details available from the Tein product site here.
