Tein

TEIN MONO SPORT COILOVERS SUBARU IMPREZA GDA 2002-2003

  • SKU GSS28-71SS4_6
  • Car Model Subaru Impreza
  • Condition New
  • Stock Location EU/UK (No import taxes for EU or UK)
€2,185.00
Description Shipping Information

TEIN MONO SPORT COILOVERS SUBARU IMPREZA GDA 2002-2003

Model: MONO SPORT
Application: SUBARU IMPREZA GDA WRX (4DR) 2002-2003 AWD 2000cc
Part Number: GSS28-71SS4
Compatible EDFC Kit: EDK05-12140
Spring Rate Front kgf/mm: 9
Spring Rate Rear kgf/mm: 7
Adjustment Range Front mm: -45 to -65
Adjustment Range Rear mm: -15 to -35
Manufacturer Remarks: PAY EXTRA ATTENTION TO THE ABS HARNESS TENSION AT THE FULL-BUMP, WHEN ADJUSTING THE RR CASE LENGTH. AVOID SETTING RR SPRING SEAT BELOW 160MM, TO PREVENT INTERFERENCE WITH TIRE.

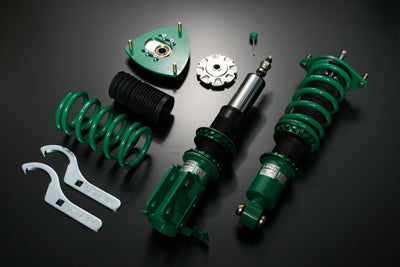

Image for illustration. Your application may vary.


Mono Sport Coilover Suspension

The Tein Mono Sport is a monotube coilover suspension system available in circuit or touring versions depending on car model. The idea behind the Mono Sport is to provide true driving pleasure for all drivers. The demands and needs for each specific application have been carefully taken into account to provide next level performance.
  • Full-Length Ride Height Adjustment Feature for maximum setting availability.
  • Mono-Tube Structure for superior road surface communication.
  • Damping Force Adjustment System + ADVANCE M.S.V.
  • Complete Kit with Adjustable Upper Mounts where applicable.
  • Mono-Tube Structure to Deliver Rich Information from Road Surface.
  • Compatible with EDFC Series to enable In-Car Damping Adjustment.
More technical information and product details available from the Tein product site here.
