TEIN MONO SPORT COILOVERS HONDA INTEGRA DC5 2001.07-2004.09

  • SKU GSA02-71SS1_6
  • Car Model Honda Integra
  • Condition New
  • Stock Location EU/UK (No import taxes for EU or UK)
€2,095.00
Description Shipping Information

TEIN MONO SPORT COILOVERS HONDA INTEGRA DC5 2001.07-2004.09

Model: MONO SPORT
Application: HONDA INTEGRA DC5 IS 2001.07-2004.09 FWD 2000cc
Part Number: GSA02-71SS1
Compatible EDFC Kit: EDK05-12140
Spring Rate Front kgf/mm: 12
Spring Rate Rear kgf/mm: 14
Adjustment Range Front mm: -20 to -40
Adjustment Range Rear mm: -20 to -40
Manufacturer Remarks: BECAUSE THE ADJUSTABLE RANGE OF THE CAMBER ANGLE IS LIMITED DUE TO THE VEHICLE CHARACTERISTICS, ADJUST THE ANGLE WITHIN THE APPROPRIATE ADJUSTABLE RANGE OF THE TOE ANGLE. FT: LH HAS LEFT-HAND THREADS. BE SURE TO TIGHTEN IN THE CORRECT (ANTICLOCKWISE) DIRECTION. (SPRING SEAT AND LOCK)

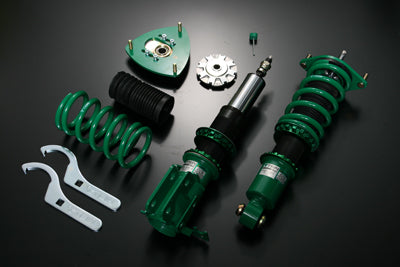

Image for illustration. Your application may vary.


Mono Sport Coilover Suspension

The Tein Mono Sport is a monotube coilover suspension system available in circuit or touring versions depending on car model. The idea behind the Mono Sport is to provide true driving pleasure for all drivers. The demands and needs for each specific application have been carefully taken into account to provide next level performance.
  • Full-Length Ride Height Adjustment Feature for maximum setting availability.
  • Mono-Tube Structure for superior road surface communication.
  • Damping Force Adjustment System + ADVANCE M.S.V.
  • Complete Kit with Adjustable Upper Mounts where applicable.
  • Mono-Tube Structure to Deliver Rich Information from Road Surface.
  • Compatible with EDFC Series to enable In-Car Damping Adjustment.
More technical information and product details available from the Tein product site here.
