TEIN FLEX Z COILOVERS TOYOTA CROWN ROYAL GRS180 2003.12-2008.01
- SKU VSC76-C1SA3_7
- Car Model Toyota Crown
- Condition New
- Stock Location EU/UK (No import taxes for EU or UK)
Couldn't load pickup availability
TEIN FLEX Z COILOVERS TOYOTA CROWN ROYAL GRS180 2003.12-2008.01
Model: FLEX Z
Application: TOYOTA CROWN ROYAL GRS180 ROYAL EXTRA, ROYAL SALOON 2003.12-2008.01 RWD 2500cc
Part Number: VSC76-C1SA3
Compatible EDFC Kit: EDK05-12120
Spring Rate Front kgf/mm: 10
Spring Rate Rear kgf/mm: 8
Adjustment Range Front mm: -20 to -40
Adjustment Range Rear mm: -15 to -35
Manufacturer Remarks: DUE TO INDIVIDUAL DIFFERENCES, INNER FENDER MAY NEED TO BE CUT IF IT INTERFERES WITH THE SPRING. FOR VEHICLES PRODUCED AFTER JANUARY 1ST 2006, IF THE POSITION OF THE FOG LIGHT IS LESS THAN 250MM FROM THE GROUND, IT MAY NOT COMPLY WITH JAPAN'S VEHICLE SAFETY REGULATIONS. PLEASE ADJUST RIDE HEIGHT SO THE DISTANCE IS OVER 250MM.

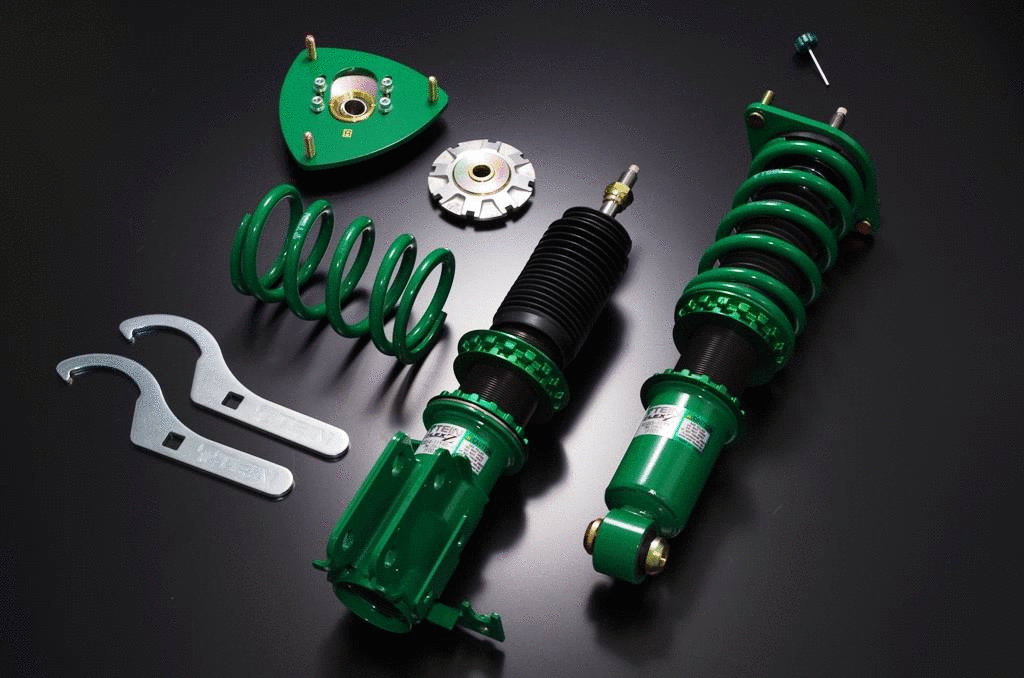

Image for illustration. Your application may vary.
Flex Z Coilover Suspension
The Tein Flex Z coilover suspension is the real all-round best coilover for most applications. With the Flex Z you have all of the full features required for real sporting use keeping the JDM quality that surpasses the competition. A truly affordable setup that is hard to beat.
- Full-Length Ride Height Adjustment with minimal effect on damping.
- Twin-Tube Structure for maximum comfort and adjustability.
- Wide range Damping Force Adjustment System for setting to soft or hard.
- Complete Kit with Upper Mount.
- Compatible with EDFC Series for In-Car Damping Force Adjustment.
