TEIN FLEX Z COILOVERS TOYOTA C-HR NGX10 2018.05+
- SKU VSTE0-C1AS3_4
- Car Model Toyota C-HR
- Condition New
- Stock Location EU/UK (No import taxes for EU or UK)
Couldn't load pickup availability
TEIN FLEX Z COILOVERS TOYOTA C-HR NGX10 2018.05+
Model: FLEX Z
Application: TOYOTA C-HR NGX10 G-T, S-T 2018.05+ FWD 1200cc
Part Number: VSTE0-C1AS3
Compatible EDFC Kit: EDK05-12120
Spring Rate Front kgf/mm: 5
Spring Rate Rear kgf/mm: 5
Adjustment Range Front mm: -20 to -40
Adjustment Range Rear mm: -30 to -50
Manufacturer Remarks: FT: SHOCK ABSORBER NEEDS TO BE DETACHED FROM VEHICLE, WHEN ADJUSTING DAMPING FORCE. FT/RR: USE OF EDFC SERIES IS RECOMMENDED, AS IT'S DIFFICULT TO ADJUST DAMPING FORCE BY HAND.

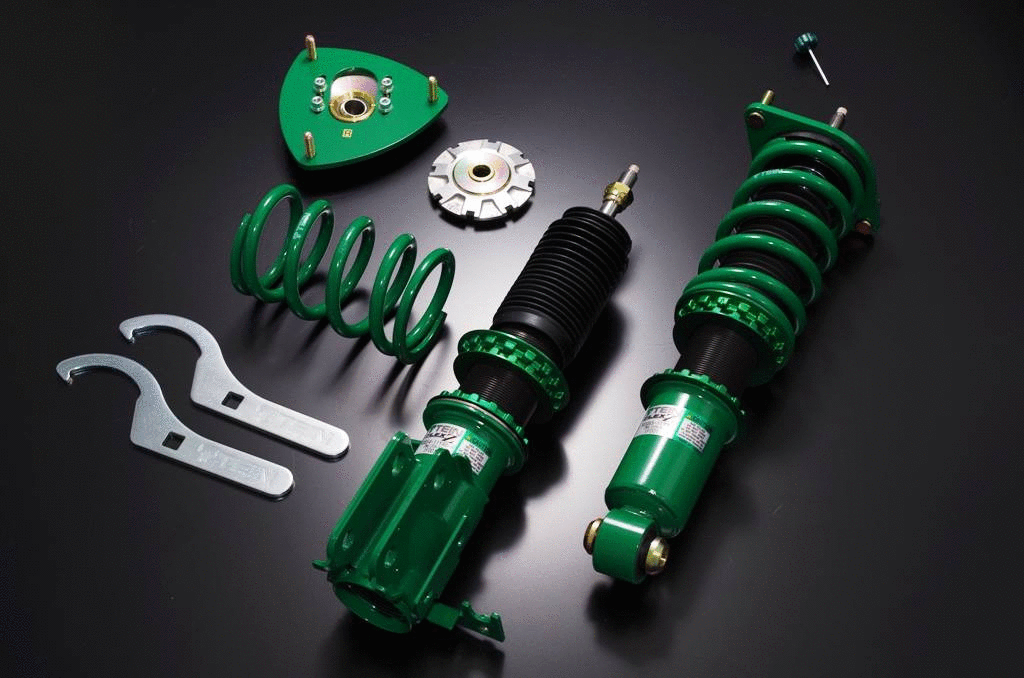

Image for illustration. Your application may vary.
Flex Z Coilover Suspension
The Tein Flex Z coilover suspension is the real all-round best coilover for most applications. With the Flex Z you have all of the full features required for real sporting use keeping the JDM quality that surpasses the competition. A truly affordable setup that is hard to beat.
- Full-Length Ride Height Adjustment with minimal effect on damping.
- Twin-Tube Structure for maximum comfort and adjustability.
- Wide range Damping Force Adjustment System for setting to soft or hard.
- Complete Kit with Upper Mount.
- Compatible with EDFC Series for In-Car Damping Force Adjustment.
