TEIN FLEX Z COILOVERS TOYOTA ALPHARD G'S GGH20W 2012.11-2014.12

  • SKU VSC78-C1AS3_5
  • Car Model Toyota Alphard
  • Condition New
  • Stock Location EU/UK (No import taxes for EU or UK)
€1,120.00
Description Shipping Information

TEIN FLEX Z COILOVERS TOYOTA ALPHARD G'S GGH20W 2012.11-2014.12

Model: FLEX Z
Application: TOYOTA ALPHARD G'S GGH20W 350S 2012.11-2014.12 FWD 3500cc
Part Number: VSC78-C1AS3
Compatible EDFC Kit: EDK05-12120
Spring Rate Front kgf/mm: 5
Spring Rate Rear kgf/mm: 7
Adjustment Range Front mm: -10 to -30
Adjustment Range Rear mm: -5 to -25
Manufacturer Remarks: RR: OE DUST BOOT NEEDS TO BE MODIFIED. WHEN ADJUSTING RR RIDE HEIGHT, H.A.S. NEEDS TO BE REMOVED ONCE. FOR VEHICLE EQUIPPED WITH OPTIONAL PARTS/COMPONENTS (E.G. TWIN MOONROOF), USE OF "VSC86-C1AS3" IS RECOMMENDED, AS THE ADDED WEIGHT MIGHT CAUSE THE RIDE HEIGHT TO DROP LOWER THAN THE STANDARD SETTING (FOR VEHICLE WEIGHT APPROX. 2,000KG & OVER).

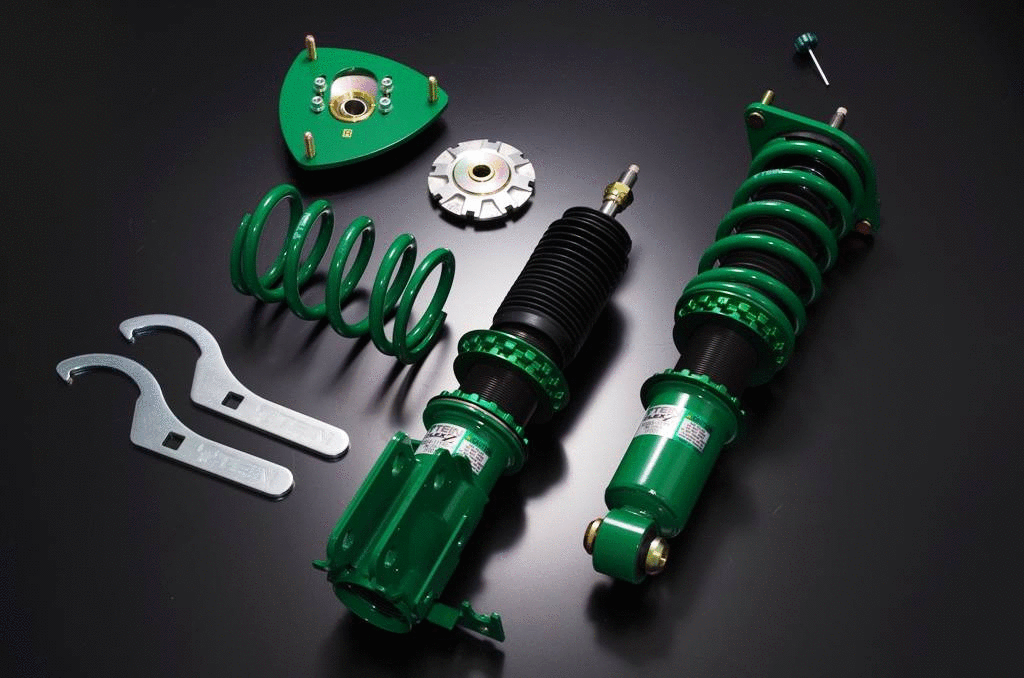

Image for illustration. Your application may vary.


Flex Z Coilover Suspension

The Tein Flex Z coilover suspension is the real all-round best coilover for most applications. With the Flex Z you have all of the full features required for real sporting use keeping the JDM quality that surpasses the competition. A truly affordable setup that is hard to beat.
  • Full-Length Ride Height Adjustment with minimal effect on damping.
  • Twin-Tube Structure for maximum comfort and adjustability.
  • Wide range Damping Force Adjustment System for setting to soft or hard.
  • Complete Kit with Upper Mount.
  • Compatible with EDFC Series for In-Car Damping Force Adjustment.
