Tein

TEIN FLEX Z COILOVERS SUBARU LEGACY B4 BL5 2003.05-2009.04

  • SKU VSS52-C1SA4_5
  • Car Model Subaru Legacy
  • Condition New
  • Stock Location EU/UK (No import taxes for EU or UK)
€1,060.00
Description Shipping Information

TEIN FLEX Z COILOVERS SUBARU LEGACY B4 BL5 2003.05-2009.04

Model: FLEX Z
Application: SUBARU LEGACY B4 BL5 2.0R, 2.0I 2003.05-2009.04 AWD 2000cc
Part Number: VSS52-C1SA4
Compatible EDFC Kit: EDK05-12140
Spring Rate Front kgf/mm: 6
Spring Rate Rear kgf/mm: 7
Adjustment Range Front mm: -25 to -45
Adjustment Range Rear mm: -25 to -45
Manufacturer Remarks: RR: INTERIOR NEEDS TO BE CUT IF IT INTERFERES WITH PISTON ROD TOP. DO NOT USE WITH RR SHELL CASE LENGTH ABOVE RECOMMENDED POSITION. WHEN RAISING RR RIDE HEIGHT, USE SPRING SEAT TO ADJUST.

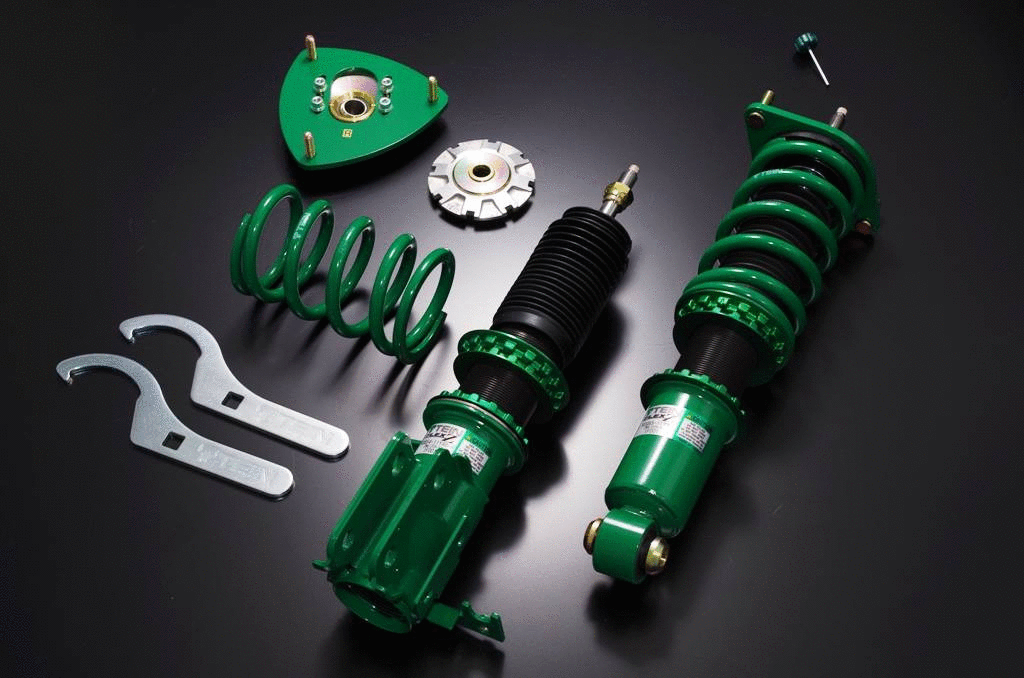

Image for illustration. Your application may vary.


Flex Z Coilover Suspension

The Tein Flex Z coilover suspension is the real all-round best coilover for most applications. With the Flex Z you have all of the full features required for real sporting use keeping the JDM quality that surpasses the competition. A truly affordable setup that is hard to beat.
  • Full-Length Ride Height Adjustment with minimal effect on damping.
  • Twin-Tube Structure for maximum comfort and adjustability.
  • Wide range Damping Force Adjustment System for setting to soft or hard.
  • Complete Kit with Upper Mount.
  • Compatible with EDFC Series for In-Car Damping Force Adjustment.
More technical information and product details available from the Tein product site here.
