TEIN 4X4 DAMPER SPORT COILOVERS TOYOTA LAND CRUISER PRADO GRJ150W 2009.09-2015.05
- SKU VSTG0-F1SS2_2
- Car Model Toyota Land Cruiser
- Condition New
- Stock Location EU/UK (No import taxes for EU or UK)
Couldn't load pickup availability
TEIN 4X4 DAMPER SPORT COILOVERS TOYOTA LAND CRUISER PRADO GRJ150W 2009.09-2015.05
Model: 4X4 DAMPER SPORT
Application: TOYOTA LAND CRUISER PRADO GRJ150W TX, TZ 2009.09-2015.05 AWD 4000cc
Part Number: VSTG0-F1SS2
Compatible EDFC Kit: EDK05-12120
Spring Rate Front kgf/mm: 10.5
Spring Rate Rear kgf/mm: 4.5
Adjustment Range Front mm: 50 to 30
Adjustment Range Rear mm: n/a to n/a
Manufacturer Remarks: EDFC SERIES IS NOT COMPATIBLE WITH PRODUCTS WITH LOT NO.25004 OR BEFORE.RR: NOT RIDE HEIGHT ADJUSTABLE.

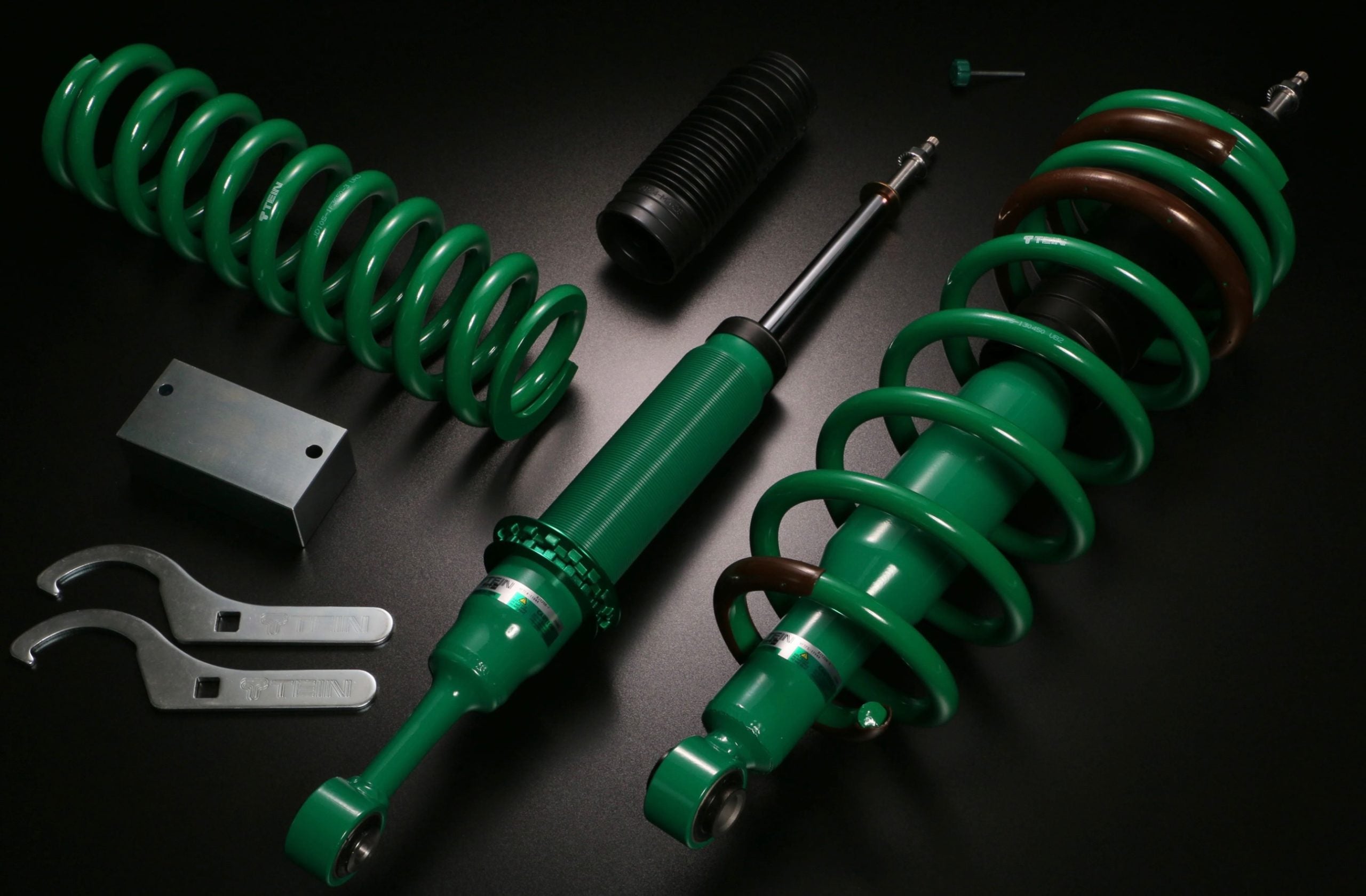

Image for illustration. Your application may vary.
4x4 Damper Sport
The ride height can be adjusted by moving the lower spring seat up or down. Its simple structure allows for easier handling.
Standard ride height for 4x4 DAMPER SPORT is set at 40mm (approx. 1.5 inch) higher than the original, to accommodate various driving scenes from streets to off-roading.
More technical information and product details available from the Tein product site here.
