JDM Distro

FLAT OUTER WHEEL LIP 20"

  • SKU jdmforgedlip20
  • Wheel Width 6
  • Wheel Diameter 20
  • Condition New
  • Stock Location EU/UK (No import taxes for EU or UK)
€350.00
Out of Stock

Can we source this for you?

We've already sent this item to a happy customer, but let's see if we can source similar for you.

Description Shipping Information

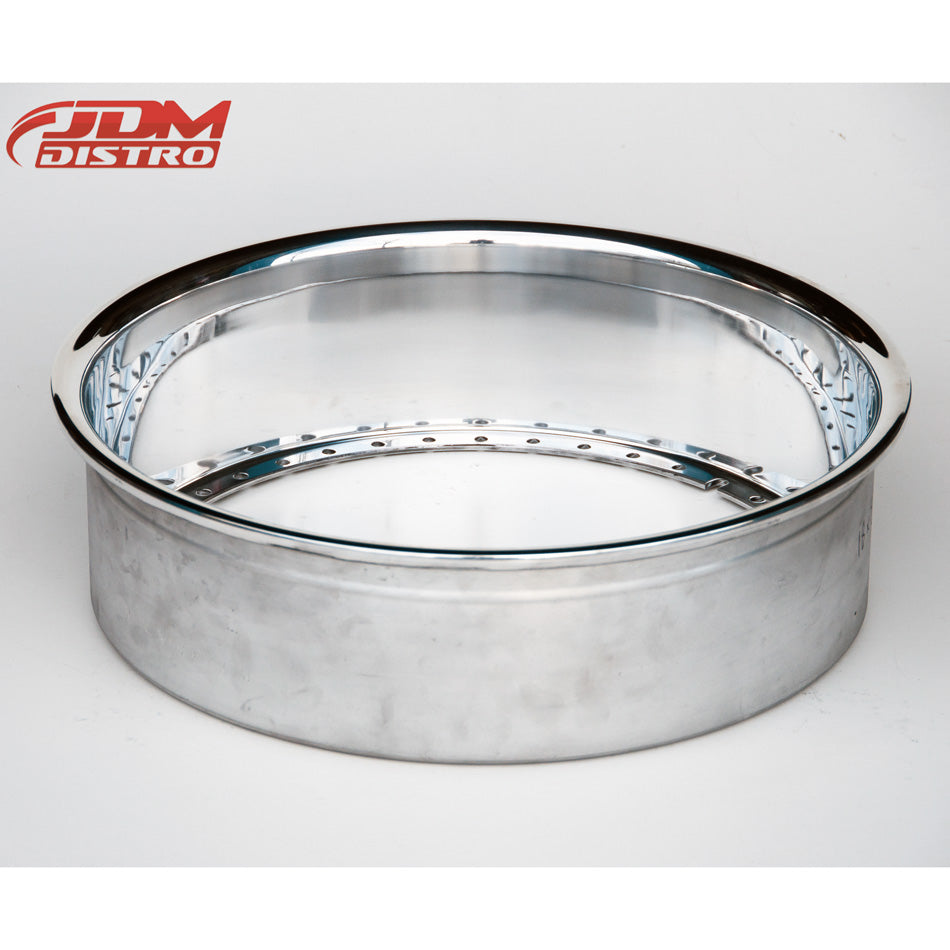

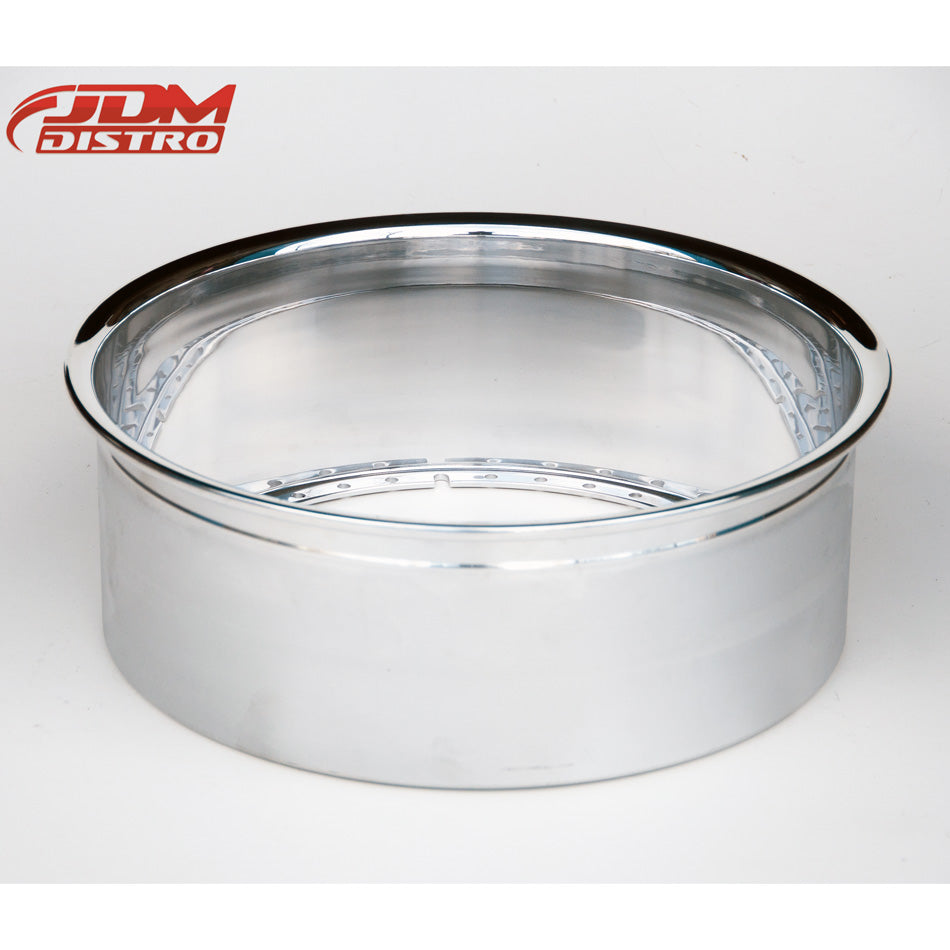

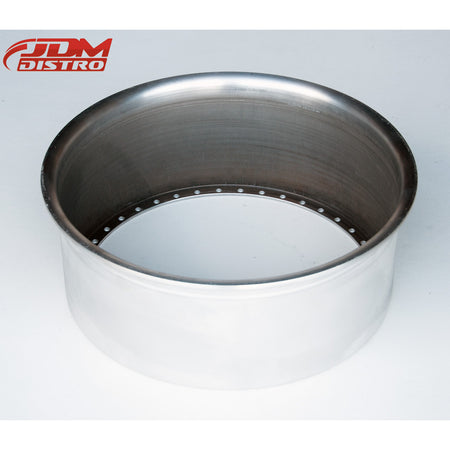

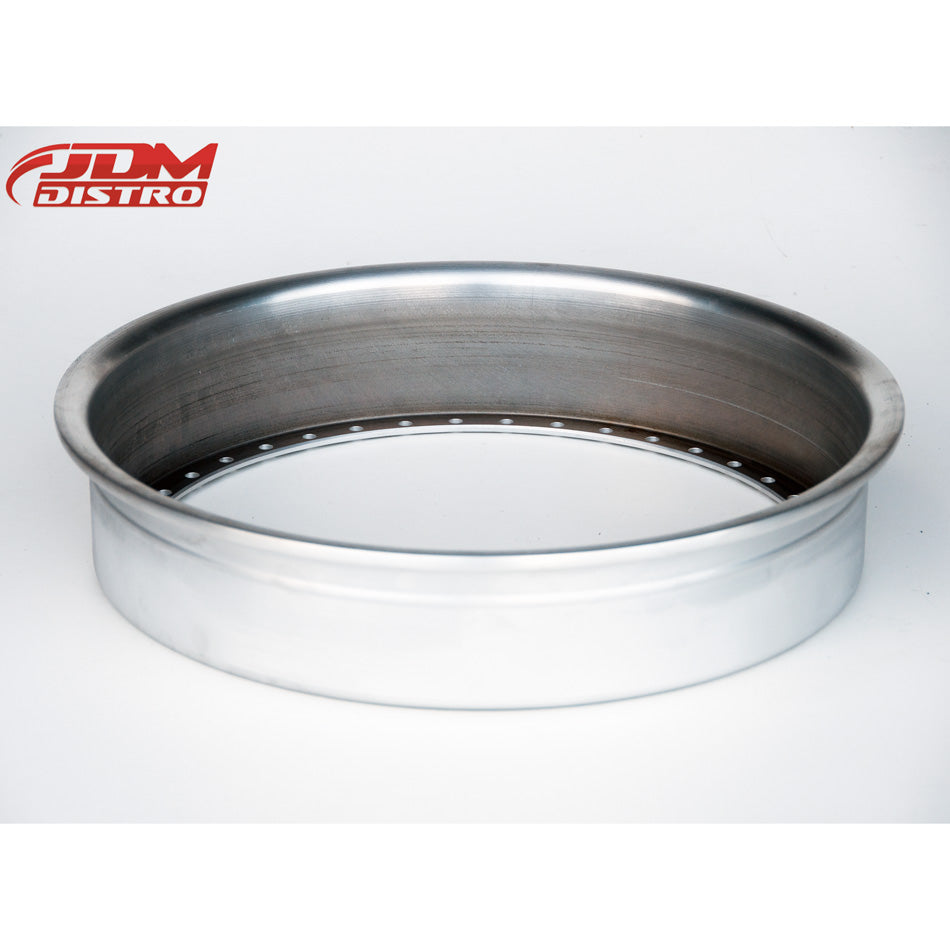

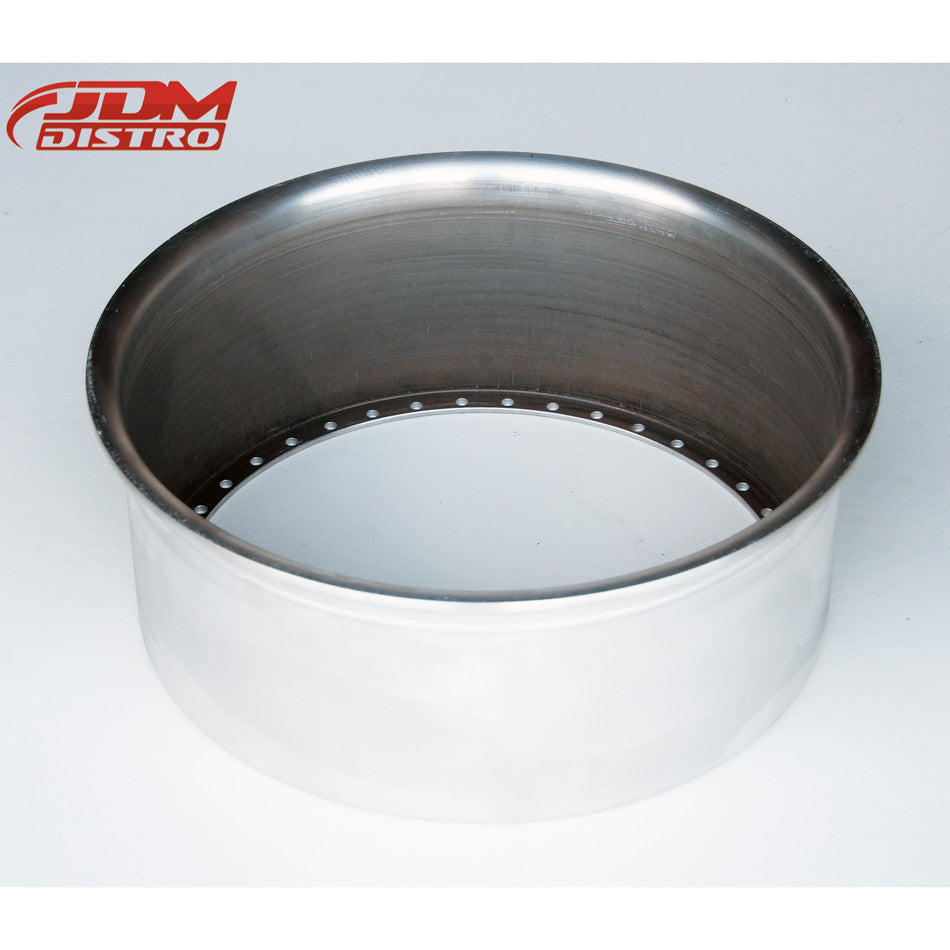

BRAND NEW FORGED WHEEL LIP DISH - FLAT LIP TYPE - REVERSE OUTER LIP

The JDMDistro wheel lips are supplied in standard raw unprocessed form or you can select full mirror polish finish if you are not painting them. Both flat lip and step lip types are in stock. Manufactured from the finest 5454 Aluminium, these are the same wheel lips used by many of the most popular major 3-piece wheel manufacturers.

20" Rim Dimensions:

  • Centre bore 17.915"inch (455.04mm).
  • 40 Bolt holes ring diameter 18.58"inch (471.93mm).
  • Lip internal diameter 19.675"inch (423.55mm).
  • Assembly Hole Pattern / Hole Sizing for M8 Bolts: 40 XØ8.5mm Equally Spaced.
  • 1 Hole Slotted For Thru Center Valve.
Features include:
  • Three Piece Forged Wheel Outer Rim
  • Flat lip, often called reverse outer lip
  • 5454 Aluminum Rim
  • ISO/TS16949 Certification
  • From 18" to 28" diameters available (PLEASE EMAIL FOR LARGER SIZES)
  • Width range from 1.5J to 10J in half inch steps.
  • STANDARD 40-HOLE PRE-DRILLED PATTERN TO FIT MOST 3-PIECE WHEELS (please make sure this is the correct hole pattern for your wheels)
  • Rolled lip edge flange for maximum strength
  • All JDMDistro barrels and lips accept TPMS pressure sensors and meet TUV, TRA, and JWL rim specifications
Advantages of 5454 Aluminium Alloy Relative to 3-piece Rim Spinning:
  • High Magnesium and high Manganese Alloy
  • Marine-grade material = high corrosion resistance
  • Achieves its hardness and toughness during the spinning (forging) process
  • No heat-treatment needed, therefore eliminating distortion
  • The rims are true and round
  • Ultimate tensile strength anywhere between 36KSI and 45KSI (same as 6061-T6)
  • No heat-treat means there is no need to cut the rims (like 6061) to make them true
  • No ‘thick-and-thin’ sections created from cutting
  • No bolt breaking issues due to out-of-parallel assembly flange caused by cutting
  • The rims achieve their full hardness/toughness during the spinning (forging) process
  • Material hardness and toughness can be selectively placed within the rim
  • Superb weld-ability
  • Over 30 years, and over a million rims on the road
Stock Note:
As the sole regional distributor, JDMDistro hold a huge stock of wheel outer and inner lips. We dispatch orders from our own stock or direct from the factory depending on stock levels. We endeavour to ship all orders within one business day wherever possible or otherwise we will contact you with a timeframe for delivery. Please allow additional time for any processing you require, e.g. lip polishing. If your order is urgent please contact us to check the stock level before placing your order.
